| Hydro Electric Power Plants |
| |
In general, specifications of hydro electric power systems vary depending upon the installation location. The hydro turbine and generator employed therein are custom manufactured in accordance with site conditions.
However, this approach, especially for small scale hydro turbines and generators, is inefficient, requiring a high construction cost which is not economically viable.
In order to improve the economic viability, we have developed a new concept to improve the manufacturing and construction efficiency of hydro turbine and generator sets for small scale hydroelectric power generation, through a mass production approach.

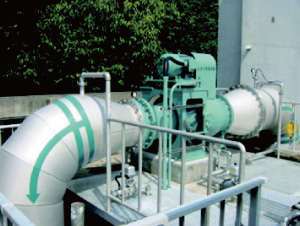

We present a new product, Hydro-eKIDS™, for Low Head and Small Scale Hydroelectric Power Plants. |
| |
| |

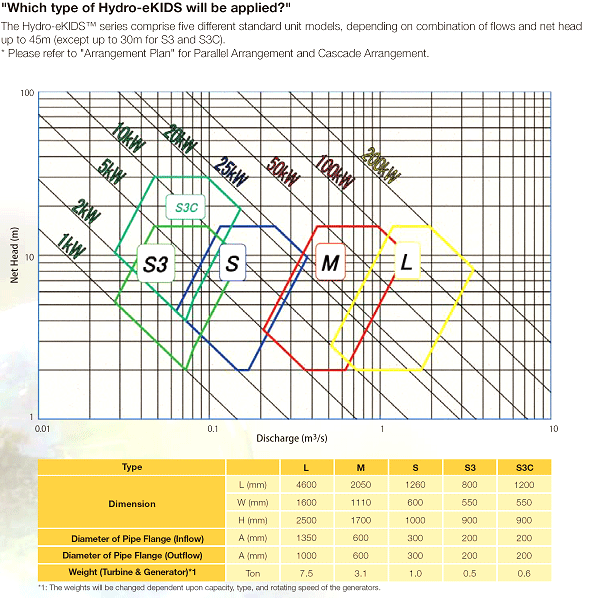

| What is the Hydro-eKIDS™? |
|

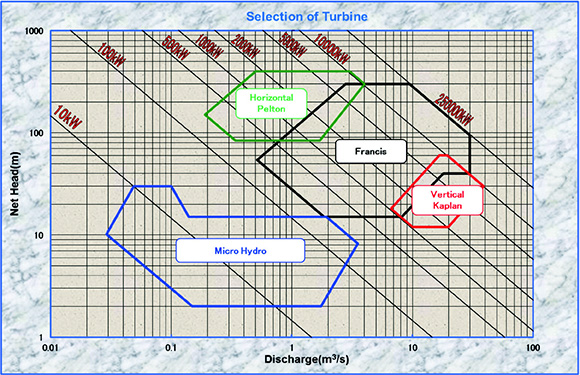

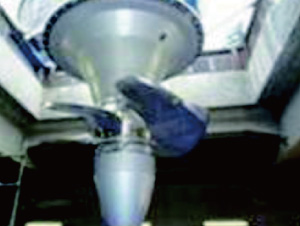

| Wide Output Range of 1 to 200 KW with four standard Propeller Turbines and effective head between 2 and 15m. |
| |
| |
| Flexible Application for Various Types of Sites |
|
| With parallel arrangement for larger discharge and a cascade arrangement for higher effective head. |
| |
| |
| Small and Comapct Package |
|
| To facilitate transportation and handling. |
| |
| |
| Reduced Construction Cost |
|
| Achieved by adopting a straight pipe-in shape for turbine water passage, which simplifies construction work. |
| |
| Reduced Concrete Volume for Foundation |
|
| Achieved by mounting the generator on the turbine structure. |
| |
| Hydro-eKIDS™
Type SS |
| Discharge 0.06 |
: |
0.2 m3/s |
| Head 2 |
: |
10 m |
| Power 1 |
: |
10
kW |
| Dimension |
: |
880LX530DX800H |
|
|
|
 |
| |
|
|
| |
|
|
| Hydro-eKIDS™
Type S |
| Discharge 0.1 |
: |
0.3 m3/s |
| Head 2 |
: |
15 m |
| Power 5 |
: |
25 kW |
| Dimension |
: |
1200LX660DX1200H |
|
|
|
 |
| |
|
|
| |
|
|
| Hydro-eKIDS™
Type M |
| Discharge 0.1 |
: |
1.4 m3/s |
| Head 2 |
: |
15
m |
| Power 5 |
: |
100
kW |
| Dimension |
: |
2150LX1120DX1800H |
|
|
|
 |
| |
|
|
| |
|
|

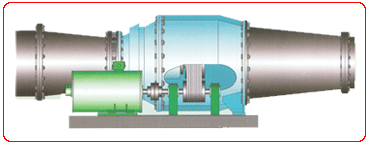

| Hydro-eKIDS™
Type L |
| Discharge 0.1 |
: |
3.5 m3/s |
| Head 2 |
: |
15
m |
| Power 5 |
: |
200 kW |
| Dimension |
: |
3600L X 2800D X1800H |
|
|
|
 |
|
| |
| SL. NO. |
Name of Project |
Location/Country |
Name of the Employer |
Scope of Work |
| 1 |
4x10.5MW Umiam Hydro Electric Project, Stage-I |
Umiam, Meghalaya, India. |
Meghalaya State Electricity |

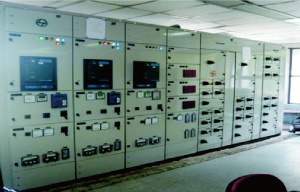

Supply of 11kV switchboard, 415V ACDB, Battery and Battery Charger; Machining and Installaion Works, Project Management. |
| 2 |
3x170MW Teesta Stage –V Hydro Power Project, |
Sikkim, India. |
National Hydro Power Corporation |
Total Project Management,
Design and engineering of On Shore portion,
Custom and Port Clearance,
Inland transportation,
entire erection and commissioning;

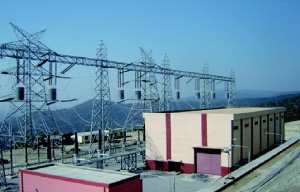

Design of structural steel for transmission Towers.
Erection & commissioning of GIS. |
| 3 |
4x225MW Purulia Hydro Electric Project, Lot 6.1 |
Purulia, West Bengal, India. |
West Bengal State Electricity Board |
Execution of works for Onshore portion. Entire civil Engineering for GIS building and Transmission towers and Gantry foundations. |
| 4 |
1x50kw Naidu STP, Micro Hydel Project, (Hydro e-KID) |
Pune, India. |
Pune Municipal Corporation |
Turnkey project including Civil, Mechanical, Electrical, Design, Erection & Commissioning. |
| 5 |
2x20 Kw Nakkiya Micro Hydro Power Project,
(Hydro e-KID) |
Chhattisgarh, India. |
NTPC Korba |
Dam & Power Plant. |
|
| |
|
| |
|
| |
|
|
